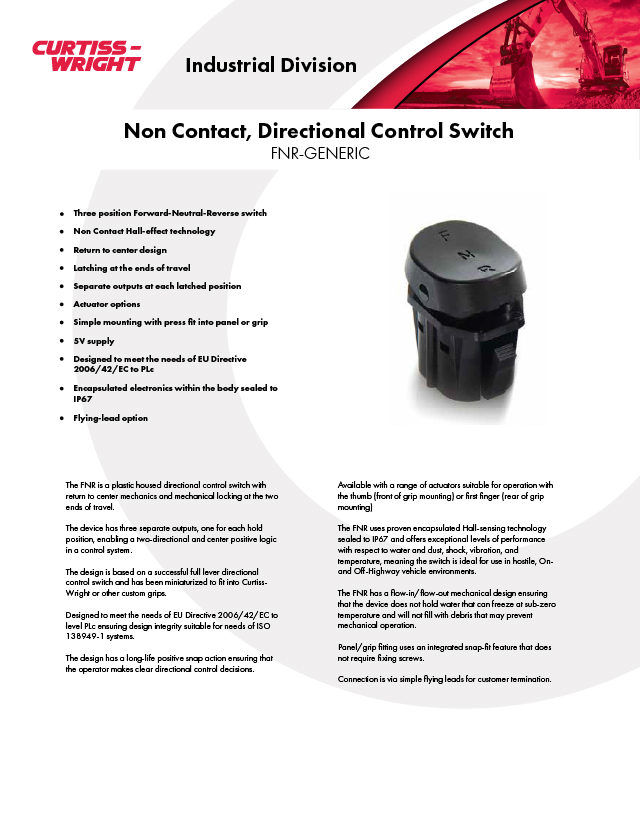

FNR Control Switch

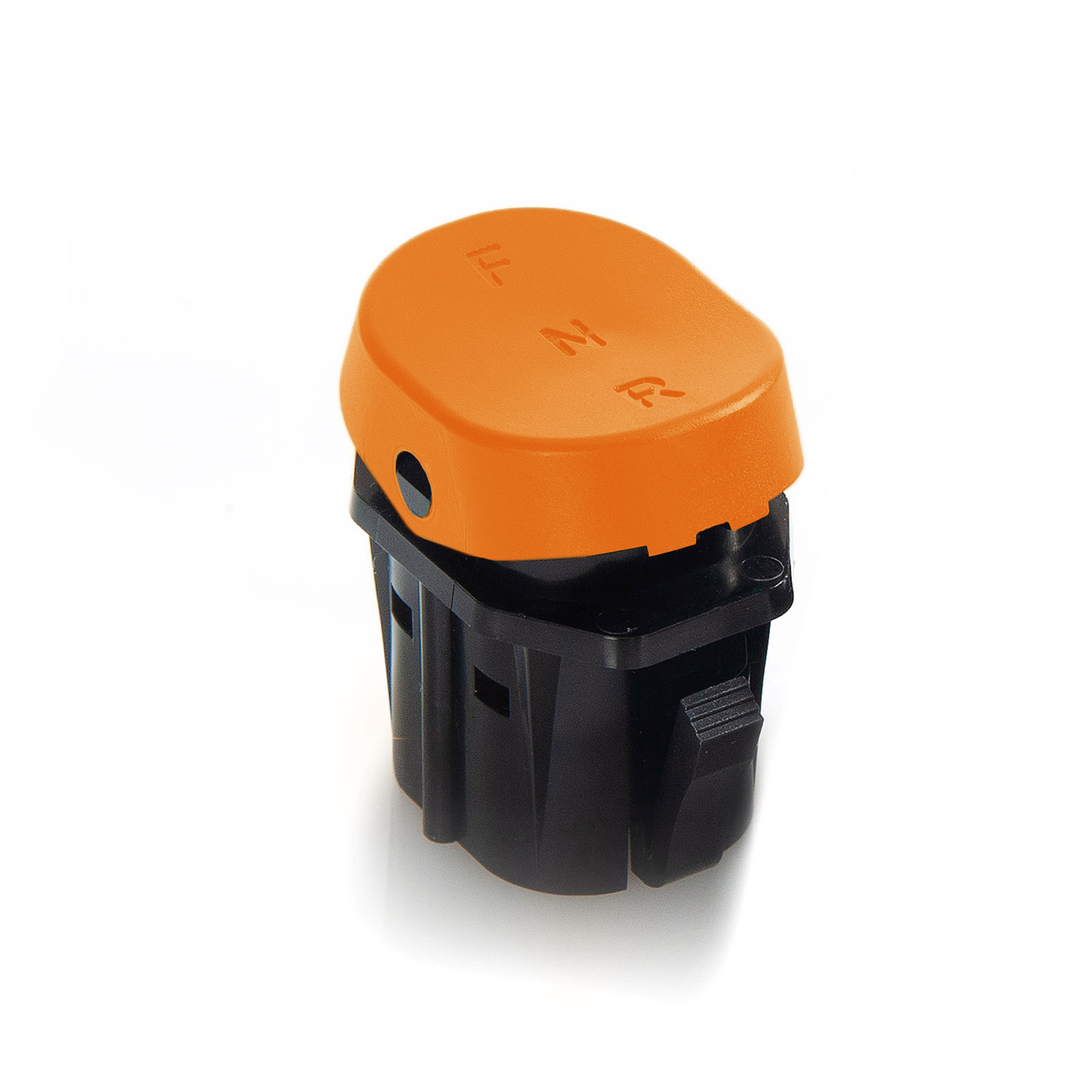

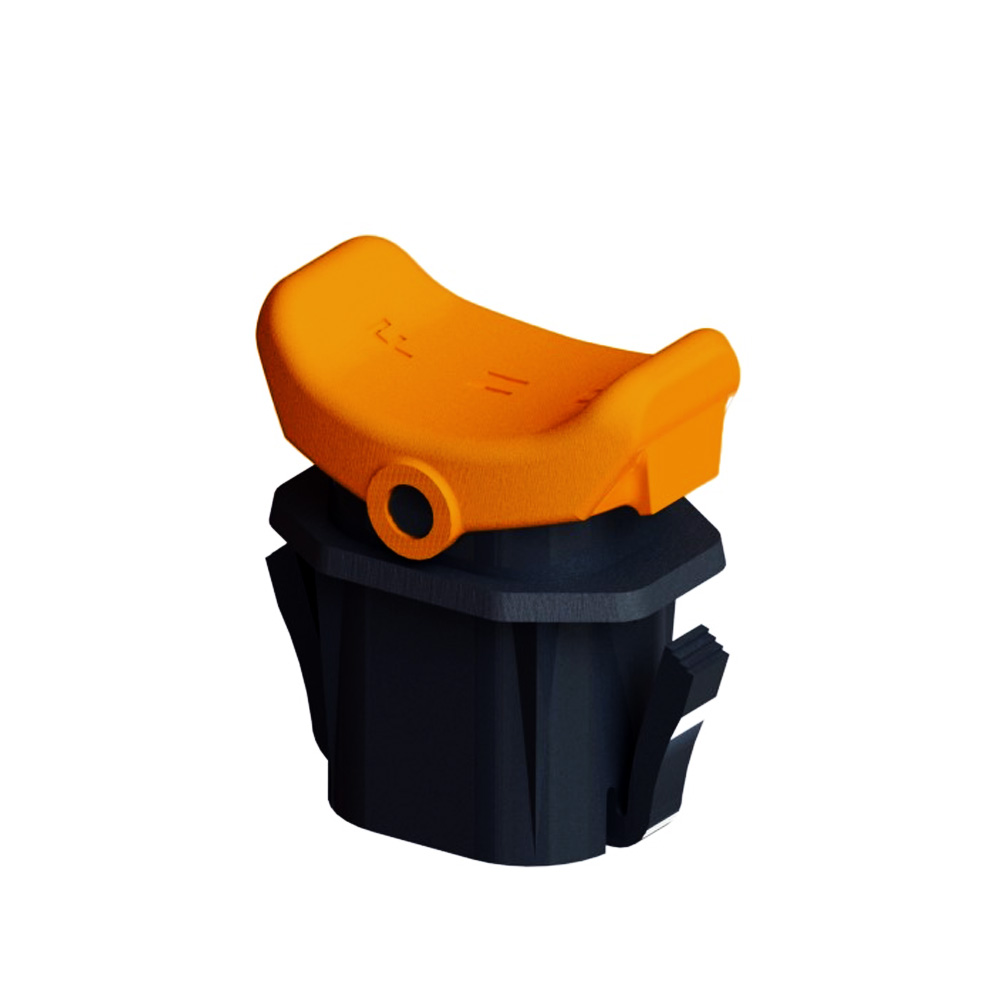

Miniaturized Directional Control Switch
The FNR directional control switch utilizes advanced Hall-effect technology, ensuring precise and reliable performance in the toughest of user environments.
It benefits from three separate outputs, one for each latched/hold position (Forward-Neutral-Reverse), enabling both two-directional and center positive logic in a control system.

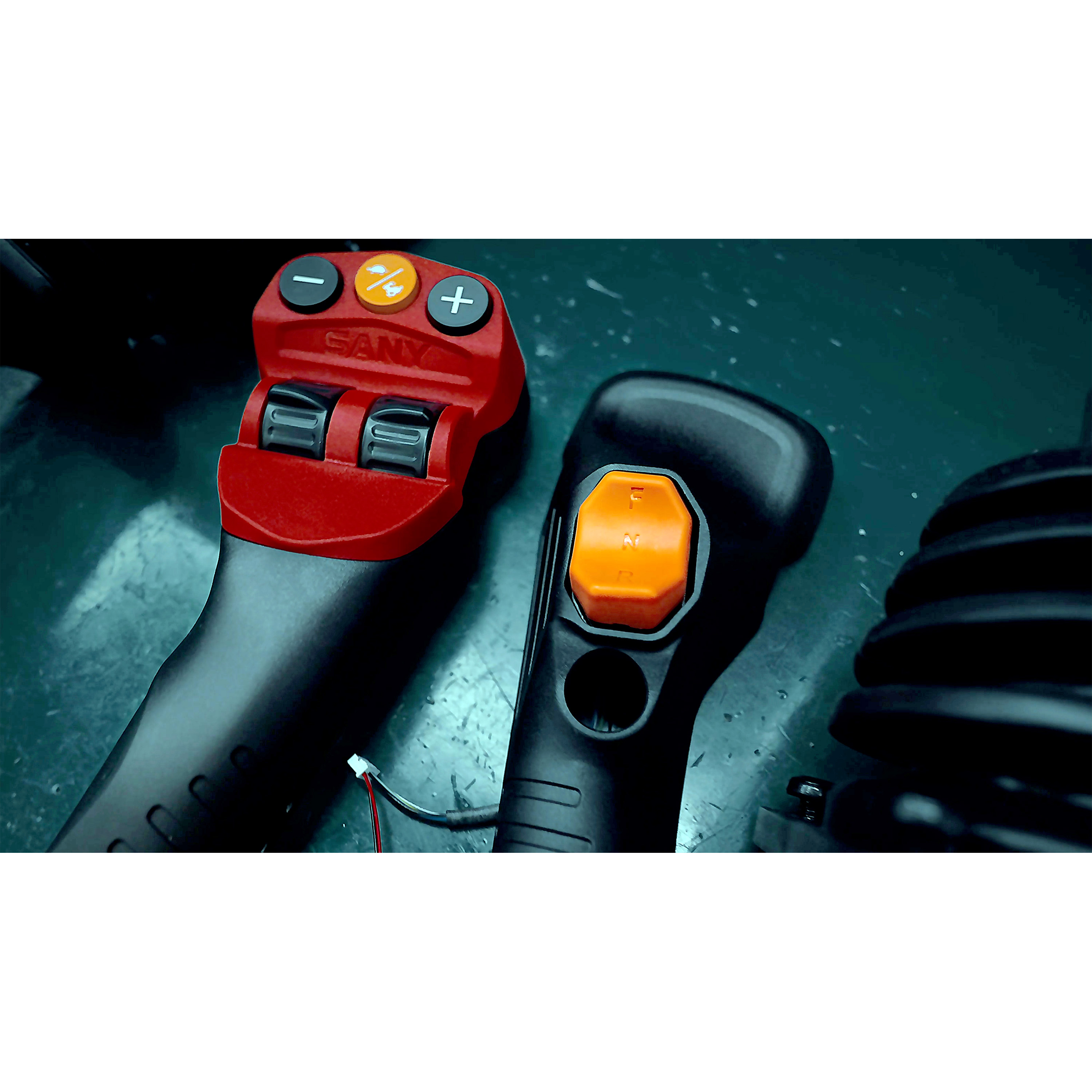

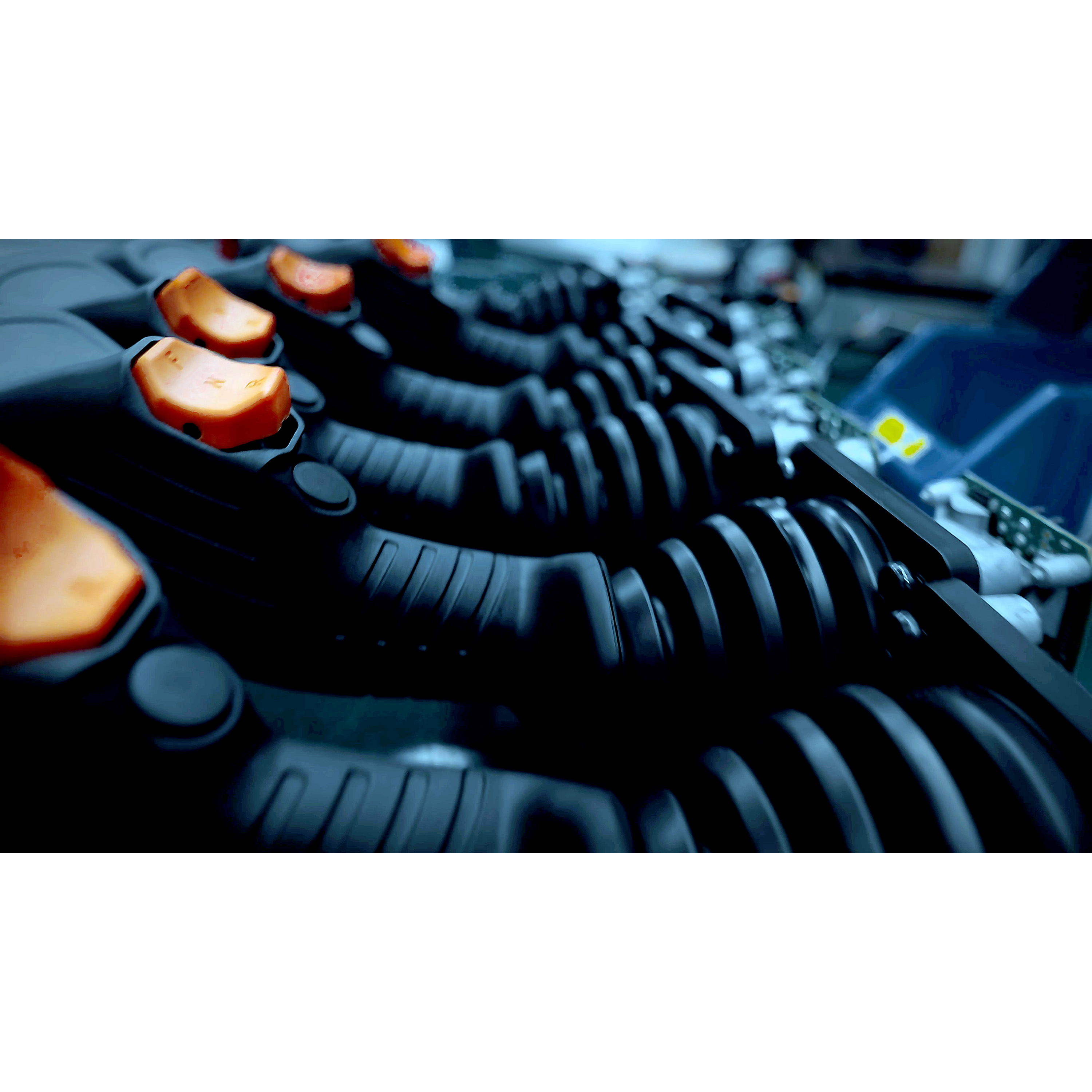

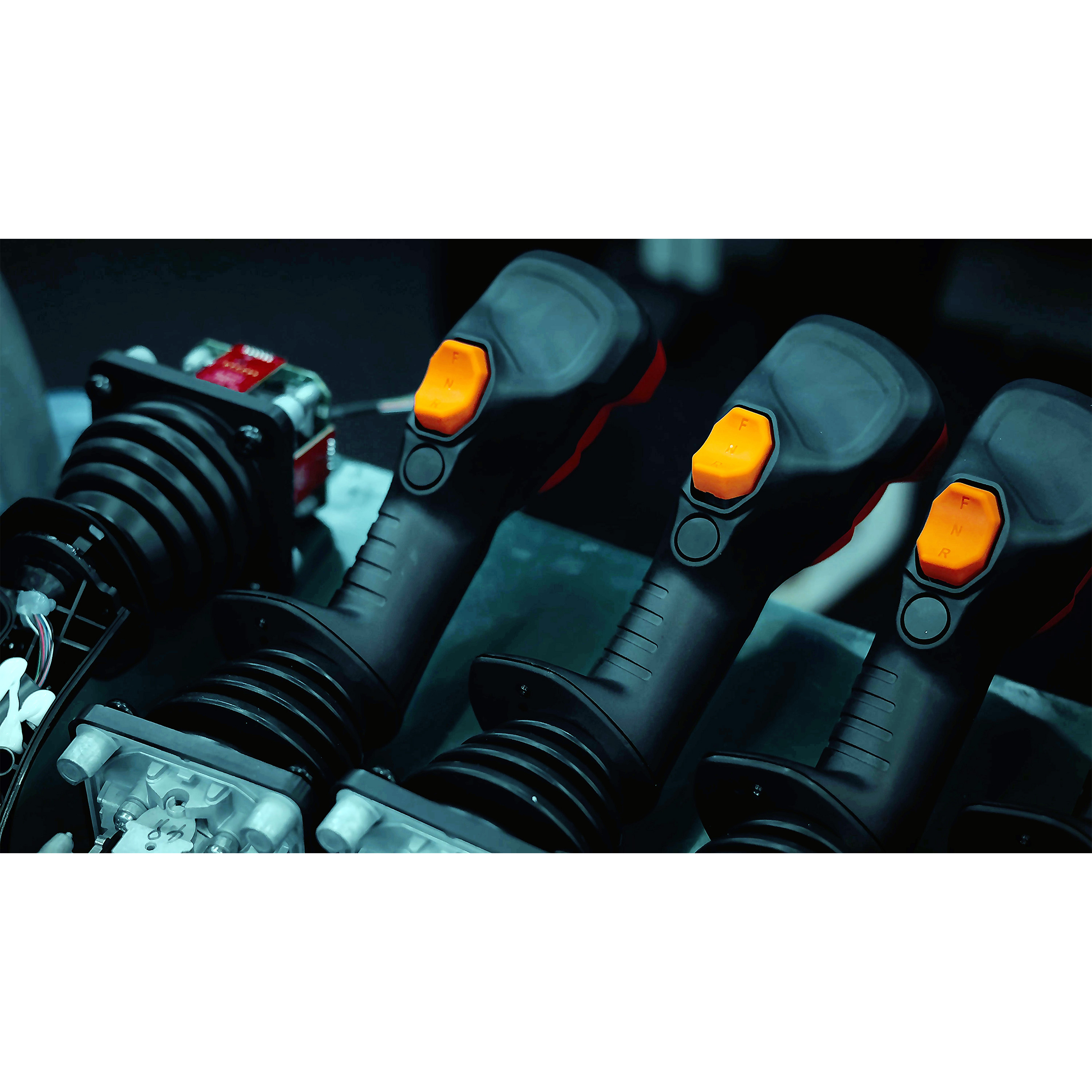

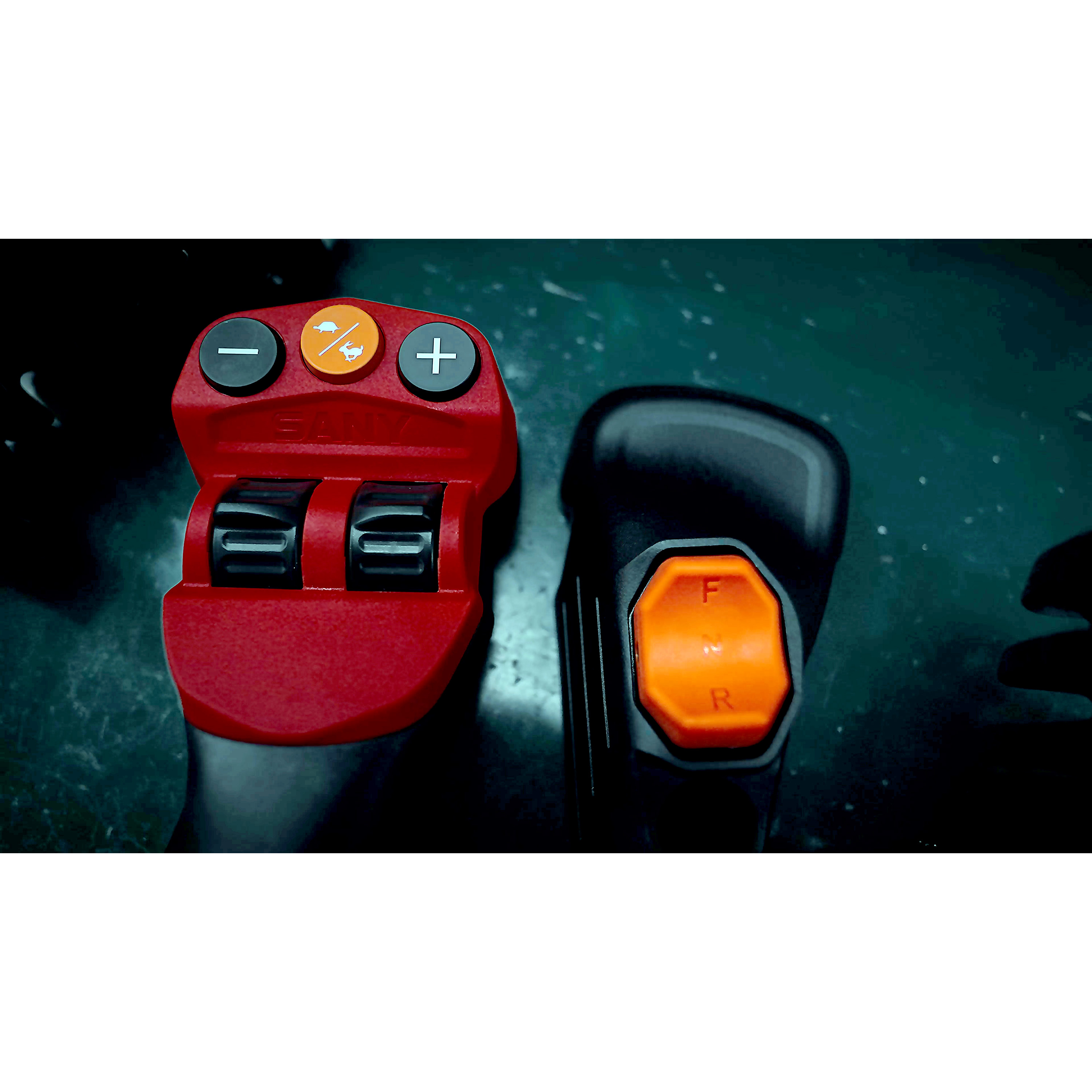

The design is based on a successful full lever directional control switch that has been miniaturized to fit into both Curtiss-Wright’s HM and custom grips, providing engineers with a versatile solution tailored for telehandlers, material handling equipment, and construction and agricultural vehicles.
Key FNR details:
- Return to center mechanics with latching at travel ends
- Rated for over 1 million cycles at 0.5 Hz
- Operating temperature from -40°C to +85°C
- Electronics sealed to IP67
- Snap-fit mounting design
- Thumb or finger operation

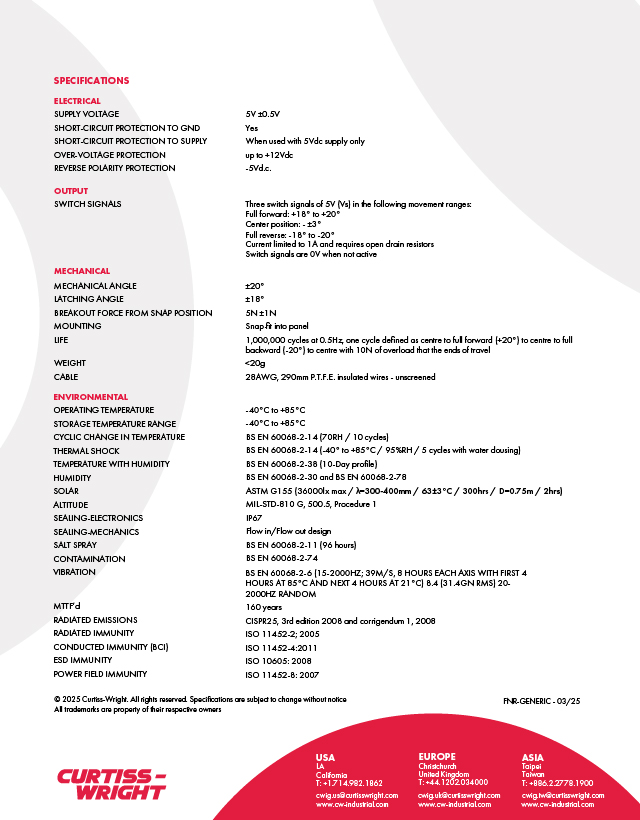

- Supply voltage: 5V ± 0.5V
- Short-circuit protection and reverse polarity protection
