Connectors

A list of connectors used on Curtiss-Wright products

More Details

Overview

General


Connectors

Beau Connectors
The industry-standard combined battery/motor/brake connector for use with newVSI.

63.20.012 - Straight cable exit
Battery Connectors
R-net & VR2 90
Battery connector kit comprising all crimps, housing and rubber boot.

D49712 - Battery connector kit
D49713 - Battery connector kit
D50287 - Battery connector kit (high current)
VR2
Battery connector kit comprising all crimps, housing and rubber boot.

D50751 - Battery connector kit
S-Drive 120 - 140 Battery Connector
Battery connector kit comprising all crimps, housing and rubber boot.

D51070 - Battery connector ki
Motor Connectors
R-net & VR2 90

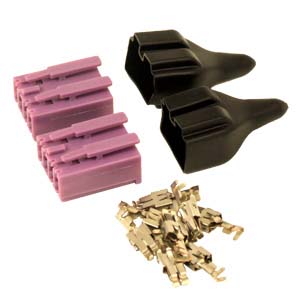

Motor connector kit comprising all crimps, housings and rubber boots.

D49713 - Motor connector kit
D50947 - Motor connector kit (high current)
VR2
Motor connector kit comprising all crimps, housings and rubber boots.

D50750 - Motor connector kit
S-Drive 120 - 140
Motor connector kit comprising all crimps, housing and rubber boot.

D51059 - Motor connector kit
Actuator & Inhibit Connectors
R-net & VR2 Actuator Connectors
Actuator connector kit comprising all crimps, housing and rubber boot.

D50754 - Actuator connector kit
R-net & VR2 Inhibit Connectors
Inhibit connector kit comprising all crimps, housing and rubber boot.

D50753 - Actuator connector kit
D51261 - ISM-8 Inhibit connector kit (2 per pack)
Encoder Connectors
R-net Encoder Connectors
Encoder connector kit comprising all crimps, housing and rubber boot.

D51261 - Encoder connector kit (2 per pack)
Lighting Connectors
R-net
Lighting connector kit comprising all crimps, housings and rubber boot.

D50784 - Lighting connector kit
newVSI & VR2
Lighting connector kit comprising all crimps, housings and rubber boot.

D50301 - Lighting connector kit
Tiller Connectors
S-Drive
S-Drive connector kit comprising all crimps and housing.

D50319 - S-Drive connector kit
Charger Connectors
R-net & VR2 On-board Charger Connector
On-board charger connector kit comprising all crimps and housing.

D50752 - On-board charger connector kit
